Pathway Pro · Line Marking System
Precision Line Marking.
Reinvented.
Pathway Pro is a next-generation electro-hydraulic line marking system engineered for warehouses, parking lots, airports, logistics hubs and road applications.
Engineered for
Uncompromising Performance.
Pathway Pro integrates advanced automation and rugged engineering to maximize uptime and deliver flawless results on every job.
5-Minute Setup
Automated pressure calibration and a quick-start workflow to get projects running instantly.
Clean in 60 Secs
A fast-flush circuit drastically reduces downtime between marking jobs.
Ultra-Bright Lines
Optimized atomization for sharp, high-contrast lines on any surface.
Zero-Downtime Refill
A swap-and-go paint tank system keeps productivity at maximum levels.

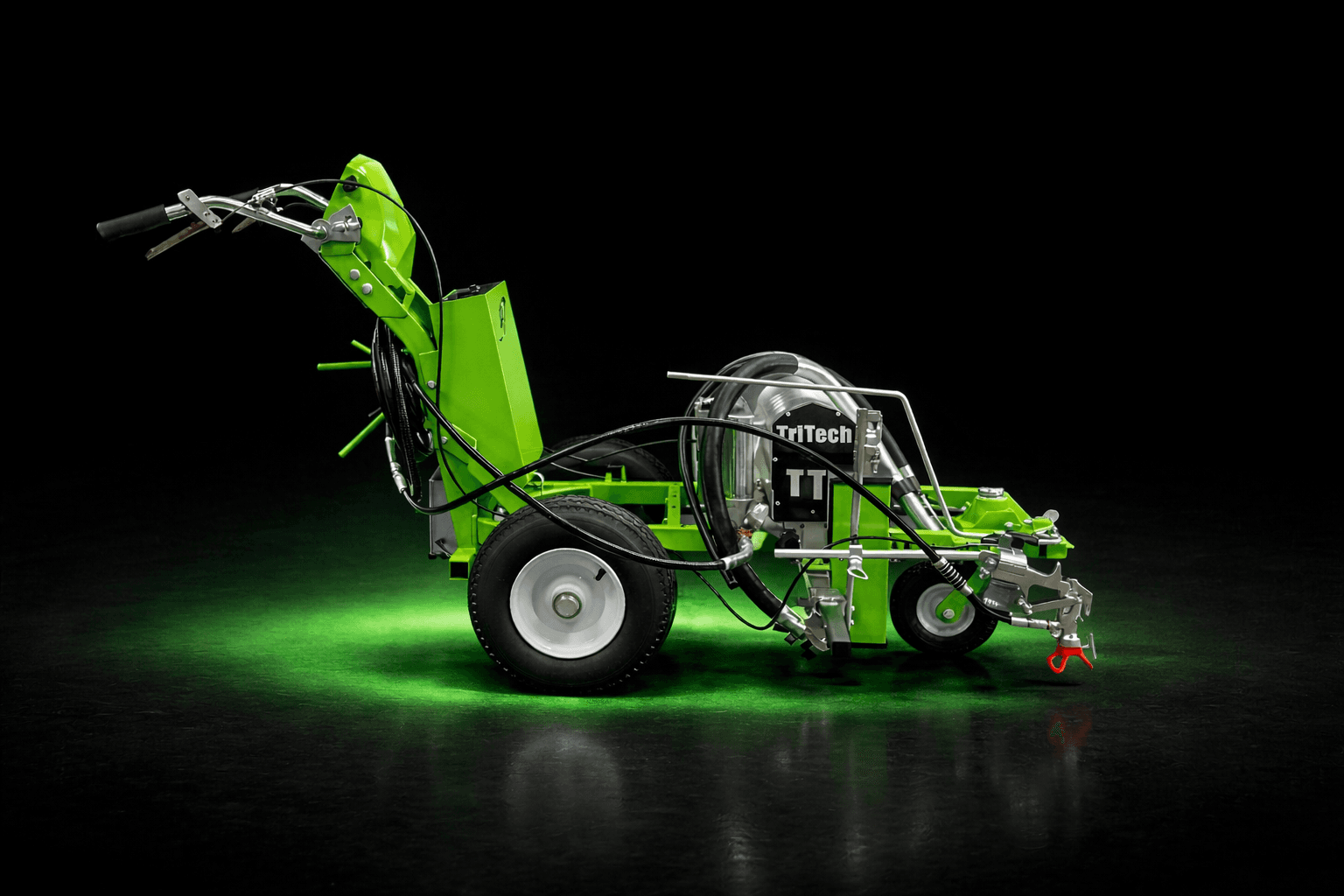

Product Overview
Pathway Pro. Compact,
electric and built to move fast.

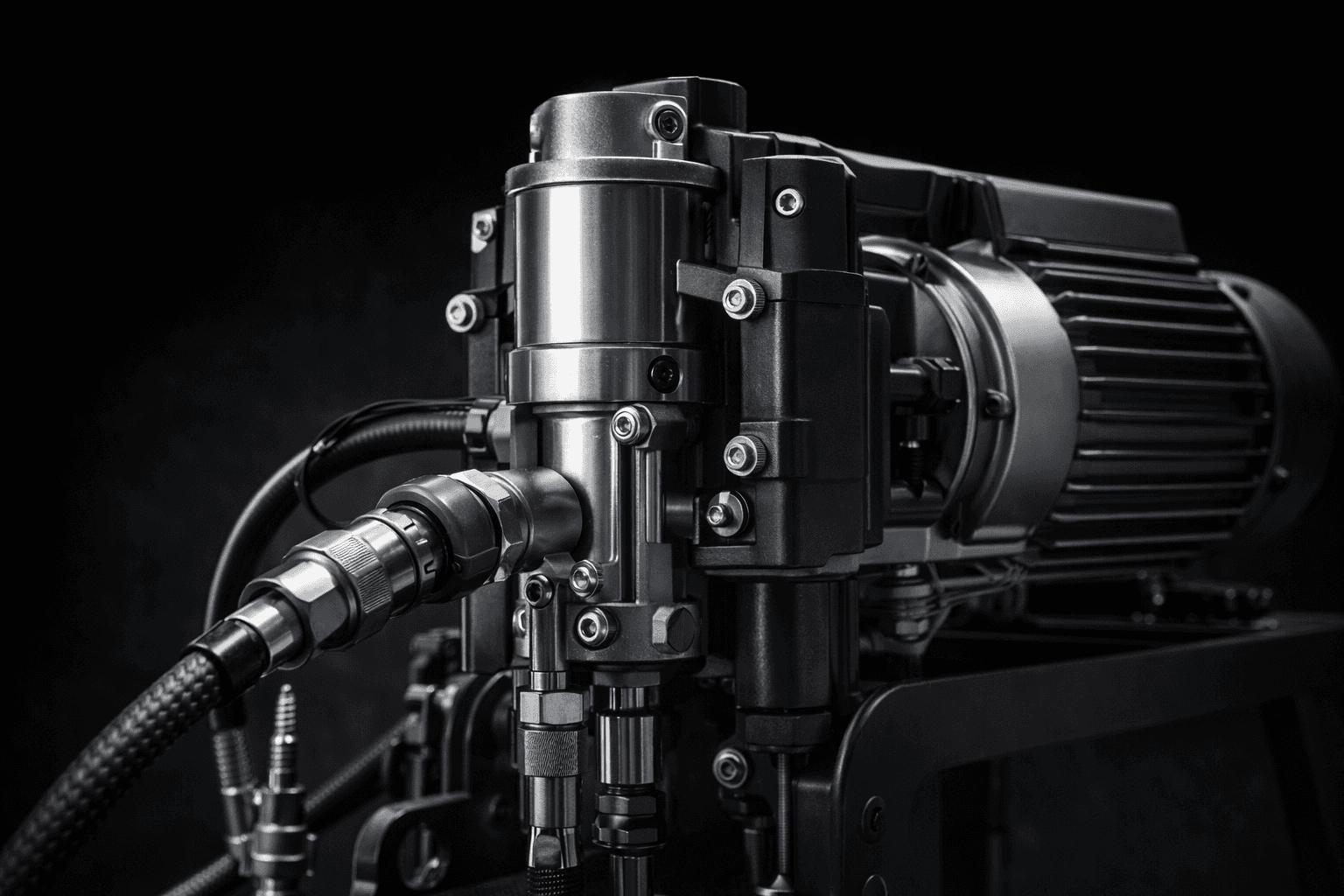

Pathway Pro combines a compact walk-behind chassis, electric drive and an airless spray unit designed for both indoor and outdoor applications. It is ideal for warehouses, parking areas and high-traffic logistics environments where accuracy and uptime are critical.
- Walk-behind design with large rear wheels for stability.
- Electric-powered for low noise and reduced emissions.
- Forward-mounted spray arm for precise line placement.
Measured Advantage
More output. Less downtime.
Based on internal trials comparing Pathway Pro to conventional walk-behind line marking systems in warehouse and parking applications.
Faster Setup
up to 35% faster setup
Pre-calibrated pressure profiles and guided startup reduce the time from unload to first line compared to conventional walk-behind sprayers.
Less Downtime
up to 45% less cleaning and refill downtime
A fast-flush circuit and swap-and-go paint tank system keep the machine marking instead of sitting in the wash bay.
More Output
up to 30% more linear meters per shift
Higher effective uptime and consistent line quality translate into more marked surface with the same crew and shift length.
Applications
Built for real-world environments.
Pathway Pro delivers consistent, high-contrast marking in both indoor and outdoor industrial settings.

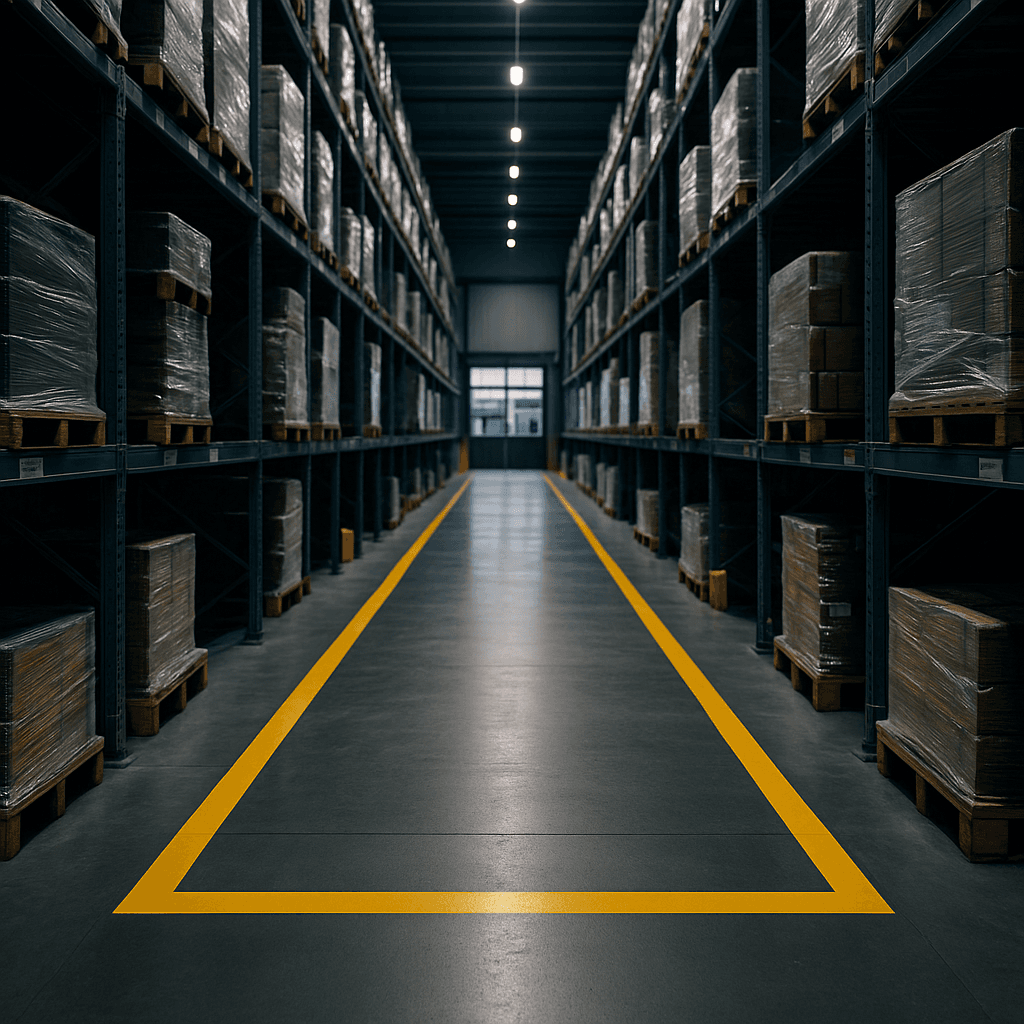

Warehouses & Logistics Hubs
Optimized for high-traffic aisles, pallet lanes and safety walkways where line quality and uptime are critical.

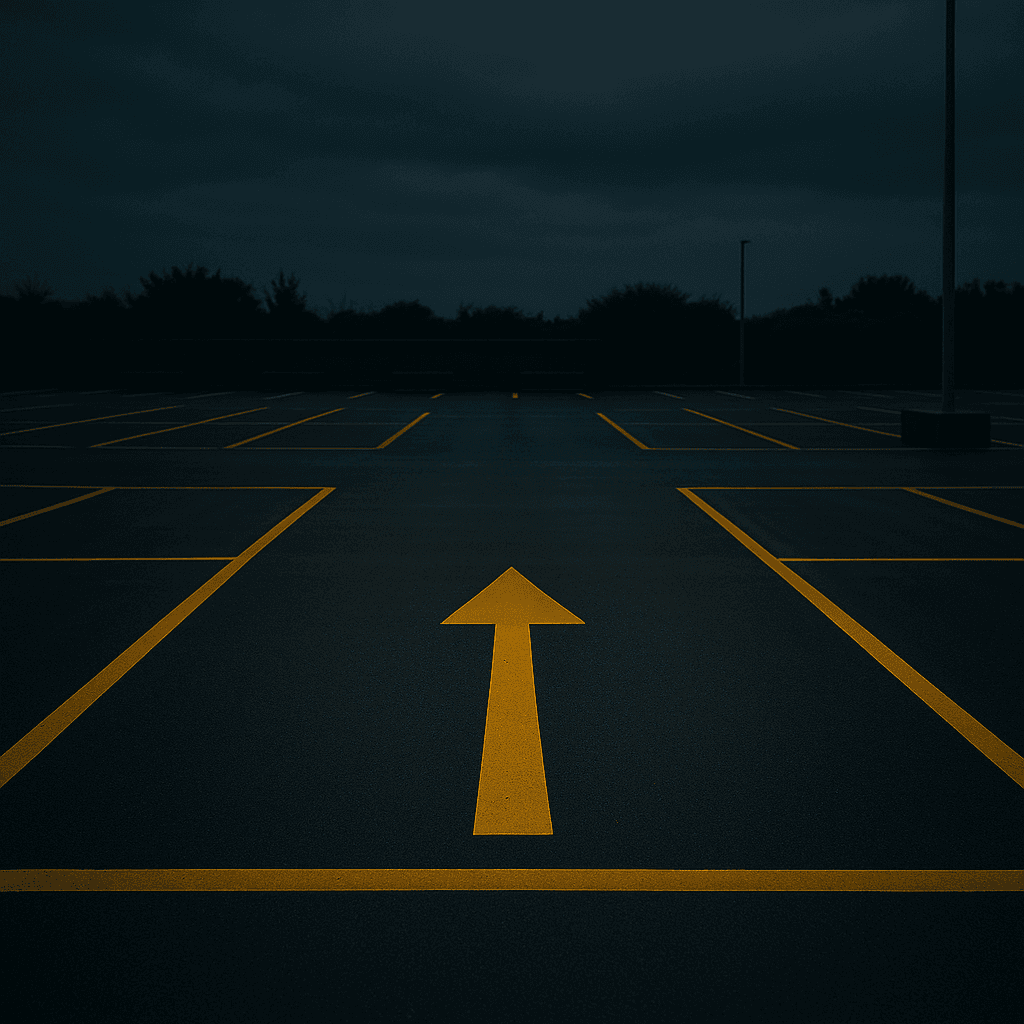

Parking Lots & Outdoor Areas
Delivers high-contrast, durable lines on asphalt and concrete, even in demanding exterior conditions.
Airports & Terminals
Suitable for terminals, service areas and indoor logistics where precision and repeatability matter.

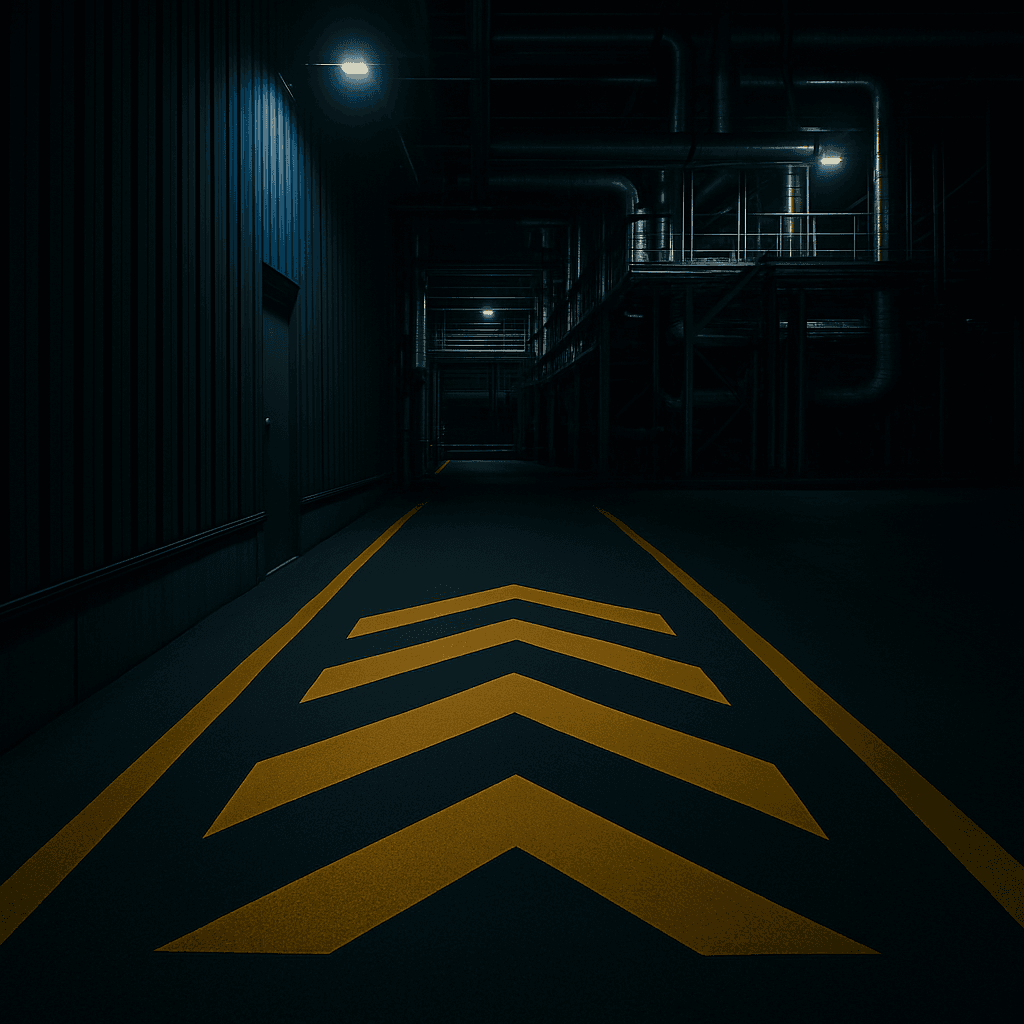

Industrial Plants
Ideal for hazard zones, equipment bays and process areas requiring safety-compliant marking.
Finishes
Available in multiple colors, ready to match your brand.
Pathway Pro can be configured with different frame colors to align with your company's brand, giving a machine that looks as professional as it performs.
Standard color: Graphite Grey
Technical Overview
System
- Electric System
- Electro-Hydraulic 24V DC
- Weight (empty)
- 220 lbs (100 kg)
- Flow
- 1.2 GPM (4.5 LPM)
- Frame
- Welded steel frame
Performance
- Paint Tank
- 5 gallons (19 Liters), swappable
- Run Time
- Up to 8 hours continuous use
- Line Width
- 2" to 12" (5 cm to 30 cm)
- Dimensions
- 60" x 32" x 40"
Full Product Catalog
Download the complete PDF catalog for detailed specifications, part lists and available accessories.
